FORCE™05 – Portable Mining Truck Axle Weigher (Trakblaze Indonesia)
Static & Dynamic Weighing | 50 Tons per Pad | Built for Harsh Mining Environments
The FORCE™05 Portable Mining Truck Axle Weigher delivers precise static and in‑motion weighing for wheel groups, axles, and total vehicle weight. Engineered for durability and accuracy, FORCE™05 is designed to perform reliably in Indonesia’s toughest mining conditions from coal and nickel operations to remote mineral sites.
Why FORCE™05 Is Ideal for Indonesia’s Mining Operations
- Static & dynamic weighing for complete operational flexibility
- 50‑ton capacity per pad
- User‑friendly, robust, accurate & reliable
- Fast setup & easy transport ideal for remote mining sites
- Individual wheel group, axle & total vehicle weight
- Pre‑factory calibrated for plug‑and‑play operation
- Sealed protection for dust, moisture & extreme conditions
- Wired or wireless connectivity (20 m cable or RF wireless)
- Built‑in printer + USB/Bluetooth connectivity
- Rechargeable battery for mobile operations
- Supports multiple languages (default: English)
Engineered for Precision, Portability & Mining Durability
FORCE™05 is built from heavy‑duty mild steel with sealed protection, ensuring long‑term performance in rugged mining environments. Its compact, low‑profile design allows for quick deployment and accurate weighing even on temporary or uneven sites.
Key Features
- Static & dynamic weighing
- 50‑ton pad capacity
- Modular, portable design
- Accurate wheel, axle & total truck weight
- Safe overload protection (120%)
- Minimal maintenance
- Ideal for temporary or permanent installations
Robust Touch‑Screen Weighing Controller
The FORCE™05 system includes a high‑performance controller designed for field use:
- Wired or wireless connection
- USB 2.0 & Bluetooth connectivity
- Built‑in thermal printer
- High‑definition LCD touch screen
- Rechargeable battery
- Up to 10 hours of operation (20 hours with screensaver)
- Approx. 9‑hour charging time
This controller ensures fast, reliable data capture in remote or high‑traffic mining environments.

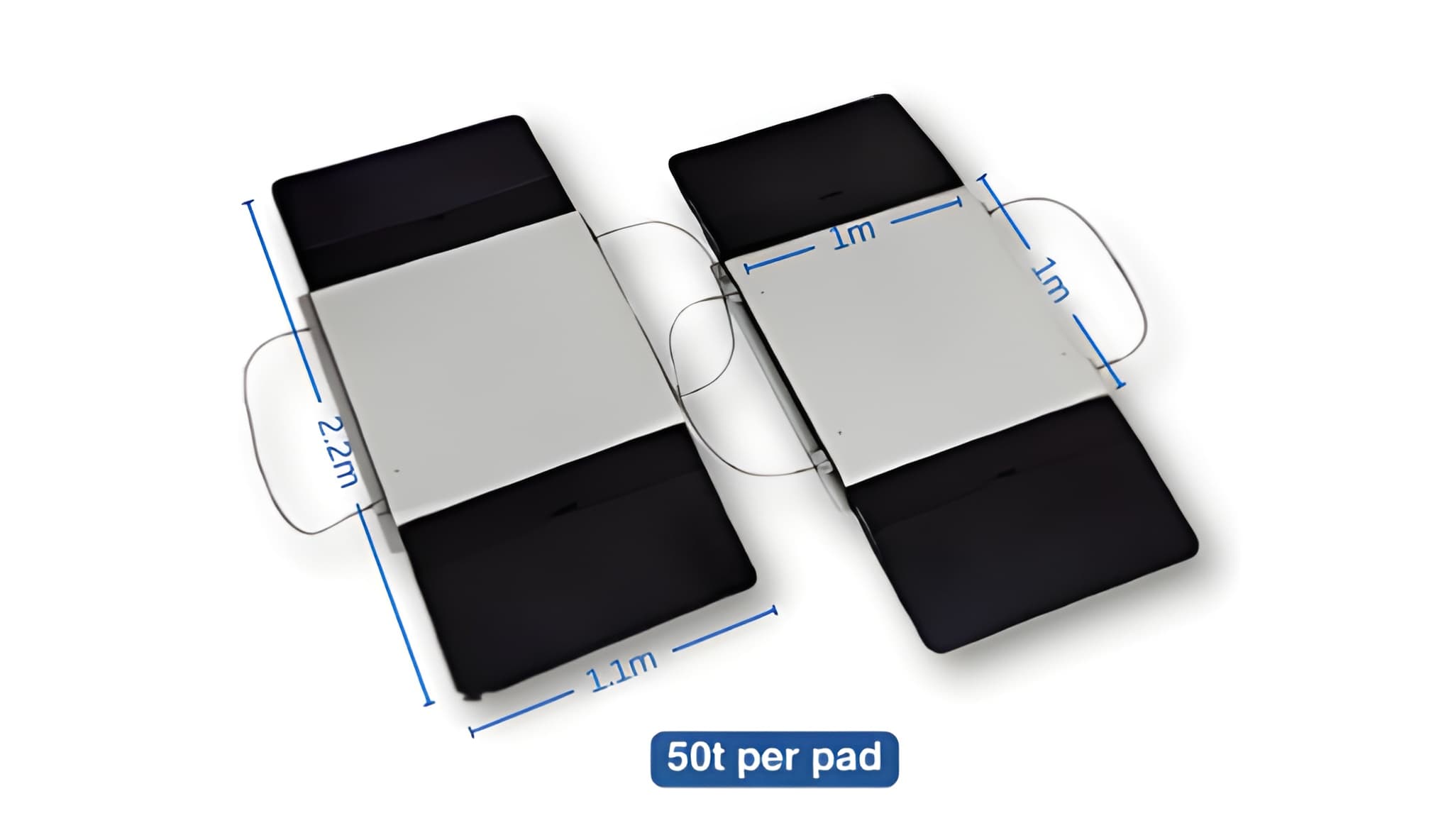

Technical Specifications
| Specification | FORCE™05 |
|---|---|
| Weighing Surface | 1 m (L) × 1 m (W) |
| Overall Size | 2250 mm × 1120 mm × 84 mm |
| Pad Capacity | 50 tons |
| Static Accuracy | ±0.05% |
| Dynamic Accuracy | ±0.5% to 1–2% (GVM) |
| Safe Load Protection | 120% |
| Connectivity | 20 m cable / 20 m RF wireless |
| Construction | Heavy‑duty mild steel |
Applications Across Indonesia’s Mining Sector
FORCE™05 is ideal for:
- Coal mining (Kalimantan, Sumatra)
- Nickel & mineral mining (Sulawesi, Halmahera)
- Copper & gold operations (Papua)
- Quarrying & aggregates
- Remote or temporary mining sites
- Haul truck load verification
- Production monitoring
- Safety & compliance checks
Benefits for Indonesian Mining Operators
Improve Load Accuracy
Prevent overloading and reduce equipment wear.
Increase Productivity
Dynamic weighing keeps trucks moving no need for full stops.
Reduce Operating Costs
Better load control reduces tyre wear, fuel consumption & maintenance.
Enhance Safety
Accurate axle loads reduce risk of structural failures and accidents.
Deploy Anywhere
Portable design is perfect for remote, rugged, or temporary mining sites.
